Okulemererwa kuno kulina enkola era ezisinga zizuulibwa mu ddakiika 30 oba wansi. Ekitabo kino kitegekeddwa okwetoloola engeri okugonjoola ebizibu gye kukola mu butuufu: okutandika okuva ku by’osobola okulaba ku ssirini, olwo n’okola emabega okutuuka ku kivaako. Oba oddaabirizascreens eziraga LCD ez’obusuubuzimu by’amaguzi, okuddukanya panels mu kiosks ez’olukale, oba okulongoosa embedded hardware mu kiseera ky’okukulaakulanya, enkola y’okukebera y’emu.
Okujuliza Obubonero Obw’amangu
Kozesa emmeeza eno nga omusengejja gwo ogusooka. Ebintu ebingi ebivaako obulwadde buno bisobola okuvaamu obubonero bwe bumu, n’olwekyo butwale ng’endagiriro y’okutandika, so si ng’eky’okuddamu ekisembayo.
| Obubonero | Ekisinga Okuyinza Okuvaako | Ekikolwa Ekisooka |
|---|---|---|
| Screen enzirugavu ddala, tewali backlight | Amasannyalaze okugwa oba fiyuzi okufuuwa | Pima vvulovumenti eyingizibwa ku ppini za modulo |
| Screen on naye nga dim nnyo | Okukendeera kw’ettaala y’emabega oba okulemererwa LED array | Gezesa circuit y’ettaala y’emabega nga weetongodde |
| Ekifaananyi ekizibu ekirabika n’ettaala yokka | Okulemererwa kw'ettaala y'emabega - ekipande kyennyini kikola | Kebera emiguwa gya LED ne circuit ya ddereeva |
| Okwolesebwa okumyansa oba okumyansa | Loose ribbon cable oba voltage y’okugabira etali nnywevu | Ddamu oteeke ebiyungo byonna; kebera supply ripple |
| Layini eziyimiridde oba eziwanvuye okubuna ssirini | Substrate eyatika oba ensobi ya IC ya ddereeva | Okukebera n’amaaso; swap driver board |
| Ebifaananyi ebitabuddwatabuddwa oba ebibula | Obutakwatagana bwa protocol oba ekizibu kya firmware | Kakasa ensengeka z'empuliziganya okusinziira ku datasheet |
| White screen nga tewali birimu | Initialization okulemererwa oba okufiirwa signal | Kebera ensengeka ya protocol; kakasa obudde bw'okuzzaawo |
| Ekifaananyi ky'omuzimu ekitaggwaawo oba okwokya-mu | Ekifaananyi ekitakyukakyuka ku kipande ekikaddiye kiwanvu nnyo | Enzirukanya y’amaanyi; run pixel-okuzza obuggya enkola y'okugezesa |
| Touch input si kwewandiisa | Touch cable eyonoonese oba firmware eyonoonese | Kebera waya ya ribiini; re-ekifuga okukwata ku flash |
| Okuzzaawo mu ngeri ey’ekifuulannenge oba okutambula kw’amaanyi | Voltage spike oba obusobozi bwa current obutamala | Pima okugabibwa n’ekintu ekiyitibwa oscilloscope; yongerako okukuuma okuva ku mazzi |
Mu butuufu Kiki Ekivaako LCD Module Okulemererwa?
Okukendeera kw’ettaala y’emabega
Ettaala y'emabega yesinga okulemererwa kw'ekitundu kimu-mu modulo za LCD. LED arrays zizikira mpolampola mu bulamu bwazo obw'okukola - abakola ebintu batuukiriza ebisaanyizo okulwanyisaOmutindo gw’okugezesa okwesigika kwa semiconductor ogwa JEDEC, n'obulamu obugereddwa bwawukana nnyo wakati w'ebipande by'omutindo gw'abakozesa-n'omutindo gw'amakolero-. Bulijjo laba datasheet ya modulo yo entongole ku bulamu bwayo obw'obuweereza obugereddwa wansi w'embeera zo ez'emirimu, so si muwendo gwa makolero ogwa bulijjo.
Display eriko ettaala y’emabega evunze ekyayita mu kukeberebwa kw’amasannyalaze. Ekipande kikola - tekisobola kufulumya kifaananyi kisomebwa mu kitangaala kya bulijjo eky'omu kitundu. Singa ssirini erabika ng’ekkirizibwa mu kisenge ekizibu kyokka n’efuuka kumpi etalabika wansi w’amataala ga ofiisi agayakaayakana oba ebweru, ettaala y’emabega y’esooka okugezesa.
⚠️ Ensobi eya bulijjo:okuliyirira ettaala y’emabega ekendedde ng’osika okumasamasa okutuuka ku kigero ekisinga. Kino kyanguya okwambala kwa LED era kikendeeza ku bulamu obw’omugaso obusigaddewo obw’ekitundu ekyali kivunze edda-. Okulonda hardware n'ekifo ekituufu eky'okumasamasa okuva ku ntandikwa kyewala ekizibu kyonna - laba ekyawulamodulo za LCD ez'omutindo gw'ebyobusuubuzi-okuva mu nkola endala ez'omutindo gw'abakozesa-.
Ebizibu bya Connector ne Cable
Waya za ribiini, ebiyungo bya zebra, n’ebiyungo bya solder bivunda wansi w’okukankana, okutambula kw’ebbugumu, n’okufukamira enfunda eziwera. Omutindo gw’okulemererwa kumpi bulijjo guba gwa kiseera kigere: okuwuuma ku nsengekera ezimu, ebitundu by’okulaga ebisuuliddwa wansi w’okukankana, oba ssirini ekola ku ntandikwa naye n’eremererwa ku bbugumu ly’okukola. Okuddamu okutuuza buli kiyungo nga tonnalagira bitundu kigonjoola omugabo omunene ogw’okwemulugunya mu nnimiro ku ssente za zero.
Okunyigirizibwa kw’obutonde bw’ensi
Ennyonta ekendeeza ku kuddamu kwa kirisitaalo y’amazzi; ebbugumu lyanguya okukaddiwa kwa polarizer n’okusalako adhesive; obunnyogovu buvunda obusannyalazo okuva munda, ne buvaamu ebitundu by’okulaga ebibulamu ebyeyongera mpolampola okumala wiiki. Bulijjo lambika ku mbeera ezisinga obubi-embeera, so si eza wakati. Ku nkola mu mbeera ezisaba, .ebigonjoola eby’okulaga LCD ebigatta nga biriko ebipimo by’obutonde ebikwataganazisaana okwekenneenya nga tezinnaba kuteekebwa mu nkola, so si oluvannyuma lw'okulemererwa kw'ennimiro.
⚠️ Ensobi eya bulijjo:okugezesa okwolesebwa mu mbeera za laabu n'okulowooza nti kijja kukola kye kimu ebweru, mu sitoowa ennyogovu, oba okumpi n'ensibuko y'obunnyogovu - awatali kukakasa nti modulo's rated IP class and temperature range actually match the deployment environment.
Ensonga z'amasannyalaze n'ensobi za Ddereeva
Voltage spikes zireetera driver IC okwonooneka amangu. Supply ripple - Amaloboozi ga AC ku DC rail - galeeta okwonooneka okusingawo okutegeerekeka, okukuŋŋaanyizibwa: okuddamu okutambula mu ngeri ey’ekifuulannenge, amaloboozi g’ebifaananyi, n’obulamu bwa LED obutono. Weebuuze ku datasheet ya module yo ku voltage yaayo esinga obunene ekkirizibwa eya ripple; tewali musingi gwa bonna ogukola mu bika bya panel byonna.
Obuzibu bwa firmware n'obutakwatagana bwa protocol kitundu kya njawulo ekikoppa okulemererwa kwa hardware mu ngeri ematiza. Screen enjeru oba scrambled output oluvannyuma lw'okukyusa board oba software update etera nnyo eba ensobi mu kusengeka, so si panel emenyese. Enjawulo eno nsonga ddiokugeraageranya ensengeka za ssirini z’ebbaala za LCD ne LED- tekinologiya ow'enjawulo alina enneeyisa ya protocol ez'enjawulo n'emikono gy'ensobi.
Enkola Omukaaga-Enkola y'okuzuula obulwadde
Kola ng’oyita mu bino mu nsengeka. Yimirirako amangu ddala nga ozudde ensobi - swaps eziteetaagisa kwonoona obudde era oleete enkyukakyuka empya.
Omutendera 1 - Okukebera okulaba nga tonnaba kussaako masannyalaze-.Noonya enjatika, okufuumuuka emabega w’ekipande, obubonero obw’okwokya ku PCB, ne waya za ribiini ezisenguddwa oba ezinyiga. Bw’osanga ng’omubiri gwonoonese, tokozesa maanyi. Okuyungibwa okumpi kuyinza okuleeta okwonooneka kwa cascading nga kwa bbeeyi nnyo okusinga ensobi eyasooka.
Omutendera 2 - Kakasa vvulovumenti eyingizibwa.Kozesa multimeter ku ppini z’okuyingiza amaanyi ga modulo. Voltages ezipimiddwa eza bulijjo ku TFT panels ziri 3.3V, 5V, oba 12V - kebera datasheet yo. Okusoma okusukka 5% ebweru wa spec kyetaagisa okunoonyereza. Ku nsobi ezitambula, yongera ku oscilloscope okukebera supply ripple okusinziira ku datasheet's allowable specification.
Eddaala 3 - Yawula ettaala y'emabega.Mu kisenge ekizibu, yaka ettaala ku ngulu w’ekipande mu ngeri ey’enkoona. Bw’oba osobola okukola ekifaananyi ekizibu, ekipande kikola era ettaala y’emabega yokka y’eremeddwa. Okugezesebwa kuno okumu kumalawo ekitundu ky'omuti gw'okuzuula mu sikonda ezitasukka 10 - era kikola bulungi kyenkanyi kubar-format LCD eraganga ku bipande bya nneekulungirivu ebya bulijjo.
Omutendera 4 - Waanyisiganya waya n'embaawo mu nkola.Tikka enkola y'okugezesa ennungi emanyiddwa-. Kikyuseemu waya ya ribiini n’ekintu ekikola ekikakasibwa. Singa ensobi egoberera waya, waya y’eba ekizibu. Bwe kisigala n’olubaawo, olubaawo lwe luddako. Sooka okyuse ekitundu ekitali kya bbeeyi nnyo, ekisinga okutuukirirwa.
Omutendera 5 - Kebera enkola y'empuliziganya.Screen enjeru oba okufuluma okukyamye oluvannyuma lw'okukyusakyusa board kumpi bulijjo eba nsobi mu kusengeka. Kakasa omuwendo gwa baud (UART), SPI mode (CPOL/CPHA), oba endagiriro ya I2C okusinziira ku datasheet. Omutendera guno gukwata omugabo ogutali gwa kigero ogw’ensobi muembeera z’okwolesebwa mu kiosknga modulo zikyusibwa mu nnimiro, emirundi mingi okuva mu biwandiiko ebitali bituufu.
Omutendera 6 - Koppa embeera z'ennimiro ku katebe.Ekyokulabirako ekikola mu laabu naye nga kiremererwa mu kuteekebwa mu nkola kumpi bulijjo kiba n’ekikolo ky’ebbugumu oba okukankana. Ekiyungo ekiri ku mabbali ku diguli 22 kiyinza okugguka ddala ku diguli 55 . Teeka ebbugumu erifugibwa mu kiseera ky’okugezesa ku ntebe - ensobi eraga waggulu w’ebbugumu erigere eraga okugaziwa kw’ebbugumu ng’enkola butereevu.
Okuddaabiriza oba Okukyusa? Enkola y’Okusalawo
Okuddaabiriza kikola amakulu ddiensobi esangibwa mu kitundu kimu ekikyusibwa - waya, ensengekera y’ettaala y’emabega, okulongoosa firmware - modulo kitundu kya nkola nga okunoonya okukyusa kizingiramu okuyimirira okw’amaanyi oba okuddamu okukola dizayini, era omuwendo gw’okuddaabiriza gweyoleka bulungi nti ntono okusinga yuniti empya.
Okukyusa kikola amakulu mangi ddiobubonero obuwera bulabika omulundi gumu. Ekitangaala eky’emabega ekitono, okwambala kw’ekiyungo, n’okukuba ebifaananyi okulabika awamu kiraga ekyesigika ekiraga nti obulamu bw’obuweereza buweddewo, si nsobi emu eyinza okutereezebwa. Okukyusa nakyo kikola amakulu nga modulo eriwo kati egaba ebiragiro ebirungi - okumasamasa okw’amaanyi, ebbugumu ly’okukola erigazi, okukuuma okuyingira okulungi - okwandikendeezezza ku buzito bw’okuddaabiriza mu biseera eby’omu maaso.
Nga tonnaba kwewaayo ku kkubo lyonna, kola mu bibuuzo bino ebitaano:
- Kino yuniti esoose okulemererwa, oba yalemererwa emabegako?
- Ensobi ekoma ku kitundu kimu ekiyinza okukyusibwa?
- Omuwendo gwonna ogw'okuddaabiriza - ebitundu, abakozi, n'obudde bw'okuyimirira - gusigala bulungi wansi w'omuwendo gw'okukyusa?
- Yuniti eddaabiriziddwa mu butuufu ejja kuwangaala okuyita mu kyetaagisa eky’obuweereza ekisigaddewo eky’enkola?
- Ekikyusiddwa ekiriwo kati kiwa ebikwata ku nkola eno ennungi mu ngeri ey’amakulu?
Singa eby’okuddamu bisatu oba okusingawo biwagira okukyusa, okutwalira awamu eryo lye kkubo eritegeerekeka obulungi. Laba mu bujjuvuekika ky’ebintuobayogera n’omukuguku by’okunoonya ensibuko. Ku nsonga z’ebyamaguzi n’ebipande, .ensengeka za LCD ez’enjawulo ku bipande by’amaduukaebiseera ebisinga okutuusa ebyenfuna ebirungi eby'ekiseera ekiwanvu- okusinga okuwanyisiganya obutereevu nga-for{2}}nga.
Okuddaabiriza okuziyiza
- Okufuga obutonde bw’ensi:Teeka mu nkola mu modulo's rated temperature and humidity range, nga okozesa embeera ezisinga obubi-okuteekateeka. Mu mbeera ezirimu obunnyogovu obungi-, ebisenge ebissiddwako ssimu nga biriko ebipimo bya IP ebikakasibwa kyetaagisa, so si kwegendereza.
- Enzirukanya y’amasannyalaze:Kozesa ebikozesebwa ebifugibwa nga biriko obukuumi bwa hardware surge. Weewale okudduka amataala g’emabega obutasalako ku brightness esingako - adaptive brightness control ekendeeza ku kwambala kwa LED awatali kukwata ku kukozesebwa.
- Okukebera okutegekeddwa:Buli mwezi - kebera entebe y'ekiyungo era onoonye okufuumuuka. Buli luvannyuma lwa myezi esatu - dduka enkola y'okugezesa okuzuula era okakasa vvulovumenti y'okugabira wansi w'omugugu. Buli mwaka - kebera supply ripple era okebere optical layers oba delamination oba polarizer aging.

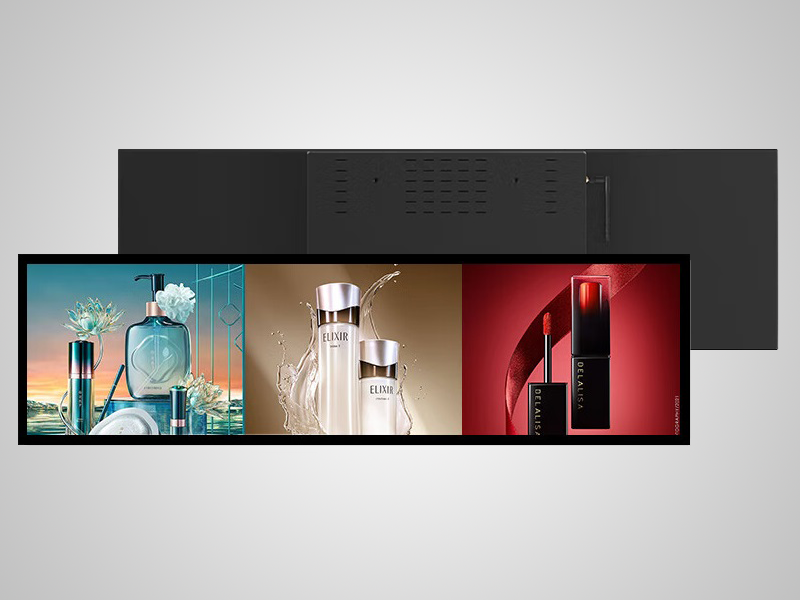

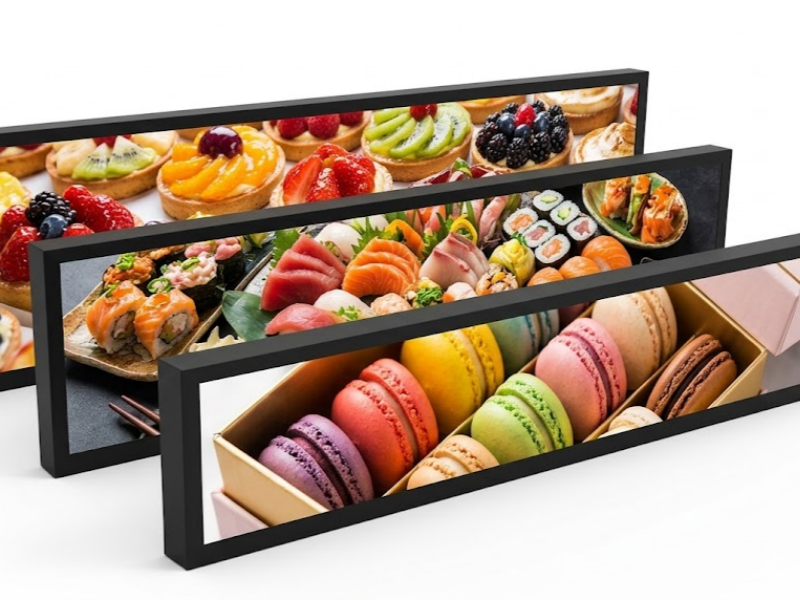

Aself-ekifo eky'okuweerezaokuteekebwa mu nkola okutambula obutasalako mu mbeera z'ebidduka ebingi-, okukebera kwa buli luvannyuma lwa myezi esatu gwe mulimu ogusinga-omuwendo ogw'okuddaabiriza ogumu.Screens za LCD ezigoloddwa ezikozesebwa mu mbeera za supamaketiokwolekagana n’okukwatibwa ennyo obunnyogovu n’eddagala ery’okwoza enteekateeka z’okuddaabiriza eza bulijjo ze ziyinza obutakolako mu bujjuvu.
Ebibuuzo Ebitera Okubuuzibwa
LCD yange eraga screen enjeru - ekipande kimenyese?
Si kituufu nti. Sikirini enjeru etera kuba kulemererwa mu mpuliziganya oba okutandika okusinga okwonooneka kw’omubiri. Kakasa ensengeka ya protocol - baud rate, SPI mode, oba I2C address - okusinziira ku datasheet ya module. Kino kikwatagana nnyo naddala oluvannyuma lw’okulongoosa firmware oba board swap nga settings ziyinza okuba nga tezikyusiddwa bulungi.
Ntegeera ntya oba ettaala y’emabega oba LCD panel eremereddwa?
Yaka ettaala ku screen surface mu angle mu kisenge ekizibu. Bw’oba osobola okulaba ekifaananyi ekizibu, ekipande kifulumya bulungi ebifulumizibwa era ettaala y’emabega yokka y’eremeddwa. Tewali kifaananyi n’akatono wansi w’ettaala kitegeeza nti ensobi eri mu kipande, ku bboodi ya ddereeva oba ekkubo lya siginiini wakati waabwe.
Display ewunyiriza esobola okutereezebwa nga tokyusizza modulo?
Emirundi egisinga obungi, yee. Okuwuuma kusinga kuva ku waya ya ribiini etali nnywevu, ekiyungo kya solder ekiri ku mabbali, oba ripple esukkiridde ey’okugabira. Okuddamu okutuuza ebiyungo n’okukakasa obutebenkevu bwa vvulovumenti y’okugabira wansi w’omugugu kigonjoola okwemulugunya okusinga obungi okw’okuwuuma nga tekyetaagisa kukyusa kitundu kyonna.
Kiba kya bulabe okussa amasannyalaze ku display ebadde efunye obunnyogovu?
Nedda Kiriza modulo ekale mu bujjuvu mu mbeera ey’obunnyogovu obutono-nga tonnaba kussaako maanyi. Okussa amaanyi ku display ennyogovu kiteeka mu bulabe bw’okukulukuta kw’obusannyalazo n’okufuuka short circuits eziyinza okwonoona panel enkalakkalira.
Lwaki okwolesebwa kwange kukola ku katebe naye ne kulemererwa mu kisaawe?
Ennimiro ezitasalako-okulemererwa kwokka kumpi bulijjo kuva ku kugaziwa kw’ebbugumu ku bbugumu ly’okukola, okukankana-okutambula kw’ekiyungo okuleetebwa, oba okufuumuuka mu kiseera ky’okutandika. Koppa embeera y'okuteeka mu nkola entuufu - ebbugumu, okukankana, obunnyogovu - mu kiseera ky'okugezesa ku ntebe. Okufuna obulagirizi ku kulonda hardware ekwata embeera ezisaba mu ngeri etakyukakyuka, .kino okulambika kw'ebyokulonda eby'okulaga LCD eby'omutindo ogwa waggulu-ekwata ku njawulo za specification ezisinga obukulu.
Mu bufunzi
Okulemererwa kwa modulo ya LCD kusoma ng’omaze okumanya ky’olina okunoonya. Ekipande ekiddugavu, olutimbe oluwunya, ebifulumizibwa ebikyamye - buli kimu kikola maapu ku lukalala olusobola okuddukanyizibwa olw’ebiyinza okuvaako, era enkola y’okukebera entegeke ezuula ensobi entuufu mangu okusinga okukyusa ebitundu mu ngeri ey’ekifuulannenge. Enkola y’emu era ekutegeeza bulungi ng’okuddaabiriza kutambudde era okukyusaamu kye kiddamu ekituufu.
Singa okulemererwa gye buvuddeko kutadde hardware empya ku agenda yo, okunoonyerezaengeri screen za LCD ez’omulembe ez’ettunzi gye zigeraageranyizibwa ku nkola z’okulaga ez’ennono, obaokuleeta okubuulirizaokukubaganya ebirowoozo ku byetaago byo ebitongole eby’okusaba.
